- Name：AJ-TD009-9W
- Model：AJ-TD009-9W

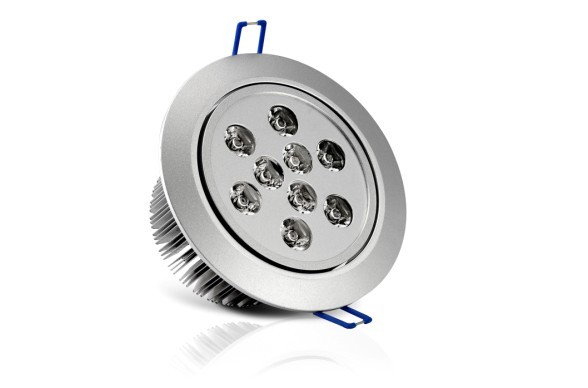

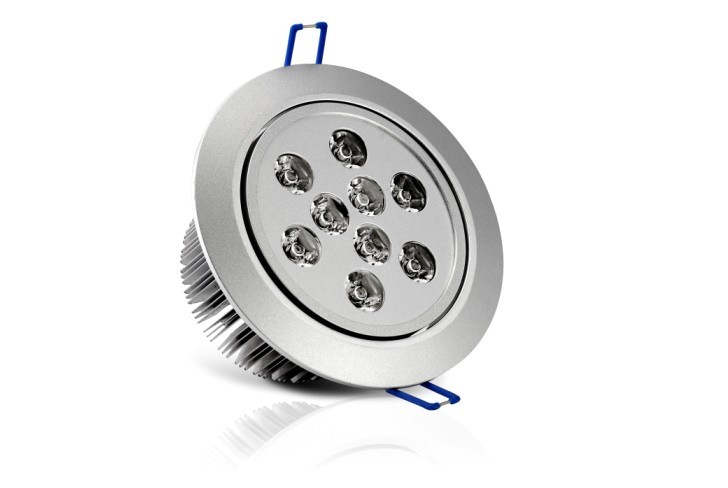

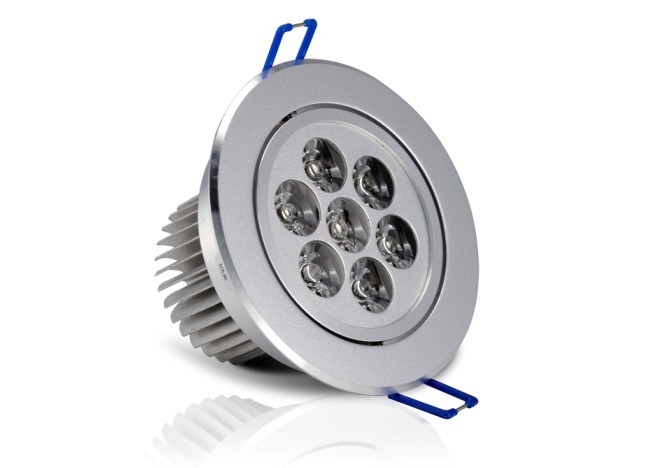

- Sketch：9W LED Recessed Lighting
- Introduction
- Parameter
|
|
|
Features:
1) Great for under-cabinet and other low voltage applications
2) To be used with A+ constant current led driver CLD-A7021
3) High output white or warm white LED
4) 50.000 hours life time (17years at 8hours a day )
5) Reverse polarity protected
6) Constant current regulation
7) Proprietary design for excellent thermal management and lumen maintenance
8) 3years warranty
Application:
1) Home /office lighting ,display case lighting
2) Under cabinet lighting
3) Art lighting
4) Boat lighting, accent lighting
Specification:
1) 350 m A constant current operation for 1W/ 700 m A constant current operation for 3W
2) Body material: anodized aluminum
3) Operating temperatureL-35-+45degrees
4) 30degrees or other as customer' s special requirement
| power consuption | 9W |
| LED QTY | 9 |
| Housing | Aluminium body & PC Diffuser |
| Input Voltage | AC85-265V,50/60HZ |
| Lumens/lm | 720-820 |
| Color temperature | 2700-6300K |
| CRI | 70-80 |
| Dimension | Φ137*70mm |
| Dimmable(avaible or not) | yes |
| Life Time | 50000hrs |
| Guarantee | 3 year |
| Chip Brand | Epistar |
| Cut-out(mm) | |
| Certificate | CE,RoHs |
| Working Temperature | -10 to +50℃ |
