- Name：100W LED Flood Light
- Model：AJ-022
- Sketch：

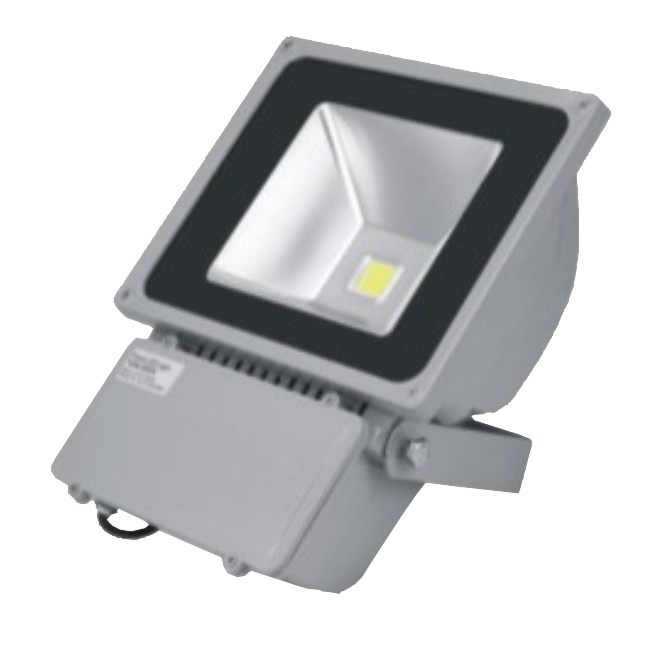

100W LED Flood Light
1, LED flood light series equips with built-in Meanwell power supply and COB(Chip on board) of Bridgelux LED.
2, The housing and heat sink are integrated as a unit, with anti-static powder painted on the surface. Adopt pure aluminum reflector with 95% reflective rate and super-white toughened glass to enhance the luminous efficiency.
3, Power consumption ranged from 10W to 150W which could be cater for many applications in your business scope, like workshop, advertisement board, high way checking station, commercial building facade and so on.4.Applications
The High Power LED Floodlight can be broadly used in square, high building wall, architect building, church, hotel, home, bridge, tree, landscape, tunnel etc.5.Installation

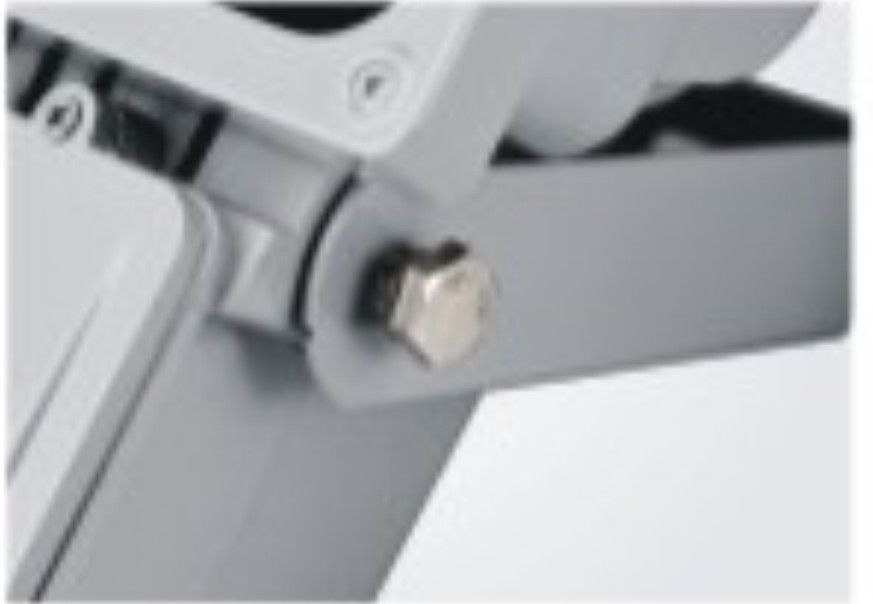

The appearance of the flood light is very beautiful. It is convenient for carrying and transportation. It has special fixed bracket in the back. It can be fixed with screw directly, simple and quick.
- Introduction
- Parameter
|
|
|
1. Advantage:
> Lifespan is 3 - 5 times than lifespan of HPS, No maintain cost
> Adjustable projecting direction
> Various colors as options: Red/ Green/ Blue/ warm white/ pure white
> 50% less power consumption than traditional light sources
> Comparing with traditional HPS or Mercury flood lights, our LED flood lights save 50% - 70% electricity cost

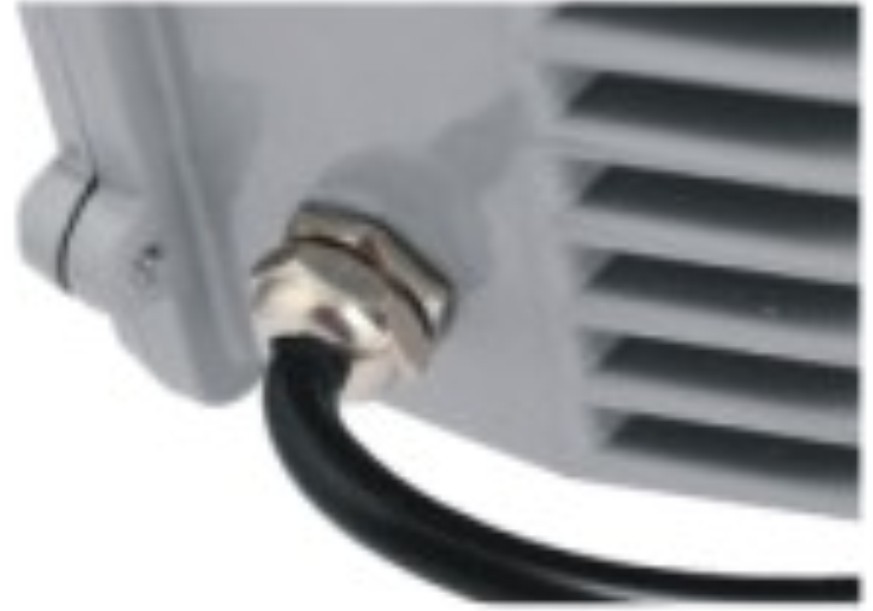

> Diameter of 1.5 sqmm rubber wire specially meets the standard of outdoor application
2. Feature:
> Long life span
> No maintain cost.
> Instant on/ off;
> Eco-friendly - no UV, IR, lead, mercury or air pollution.
> Up to 50% -70%Energy Saving Consumption
> Adjustable project direction
> Comparing with halogen lamps, it saves over 80% electricity cost
> Various colors as options: Red/ Green/ Blue/ warm white/ pure white
> IP Grade: 65
> Certification: CE, RoHS
|
|
|||
| Part No. | LED Power Consumption | Avg. Luminous Flux Output |
Equivalent to sodium/ metal halide lamp |
| AJ022-HP-FL-100W-01 | 100W | 8500~9100lm | 650W |
| Input Voltage | AC85~265V |
| Led Qty | 1pcs MCOB chip from Bridgelux |
| Frequency Range of PSU | 50Hz~60Hz |
| Total Harmonic Distortion | ≤ 9% |
| Power Factor | > 0.95 |
| Luminous Efficiency | > 90lm/W |
| Power Efficiency | > 87% |
| Working Temperature | -20Centi Deg. ~+50Centi Deg. |
| Storage Temperature | -25Centi Deg. ~+65Centi Deg. ~+optimum @25Centi Deg. |
| IP Grade | 65 |
| Size of goods: | 290x240x360mm |
| Color Rendering Index |
WW> 80; PW, CW> 75 |
| Color Temperature |
WW(2800K~3000K); PW(4100~4300K); CW(6000~6500K); |
| Material of the lamp shell |
Die casting aluminum body |
