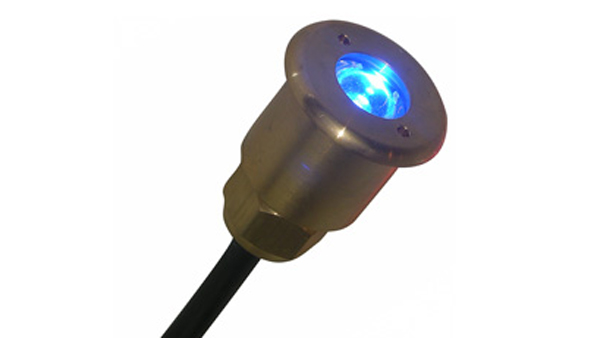

- Name：1W Underwater Light
- Model：
- Sketch：
- Power: 1W/3W
- Input voltage: DC12V
- Light color: RGB/single color
- Beam angle: 15°/25°/45°/60°
- Control mode: On-off

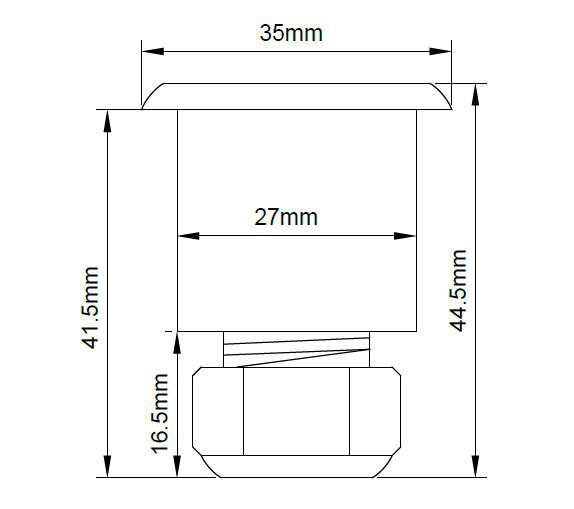

- Product dimensions: ￠35*H44.5
- Introduction
- Parameter
|
|
|
Features:
● With the independent intellectual properties in design, modem appearance,making the lights to be an artwork and perfectly combined with the environment.
● The light adopts the high-pressure die-casting stainless ststeel material.Surface treated with electrostatic plaststic-sprayed in order to anti-aging.Self-cleaning and corrosion-resistance.
● The diffuser is made of toughened glass,impact resistance.
● Light fitting can allocate white or single RGB.Various of color available.DMX 512 cortol available.

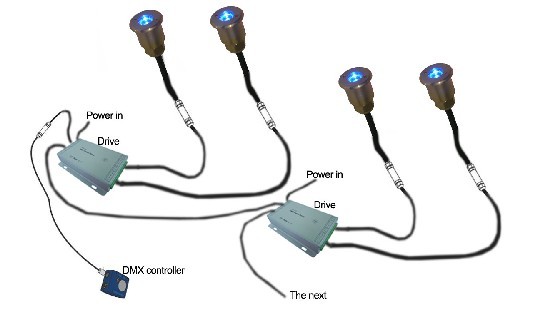

Installation Drawing:
| Electric parameter | Max. power | 1W | 3W | ||
| Current | 300mA | 600mA | |||
| Input voltage | DC12V | ||||
| Power efficiency | >90% | ||||
| Environment parameter | Environment humidity | 0～85%RH | |||
| Storage Temp. | -40°～+80° | ||||
| Operating Tmep. | -20°～+50° | ||||
| Structure parameter | Dimension | ￠35*H44.5 | |||
| Weight | 450g | ||||
| Material | copper,PMMA | ||||
| Housing color | copper color | ||||
| Protection grade | IP65 | ||||
| Optical parameter | Light source | CREE | |||
| LED type | 1pcs single color LED | ||||
| R、G、B、Y、W for option | |||||
| Leds angle | 15° | 25° | 45° | 60° | |
| Projection distance | 40M | 30M | 20M | 10M | |
| LED color Temp. | Warm white(2700～3500K)/neutral white(5000～6500K)/cool white(6500～9000K) | ||||
| Wave lenghth | Red (620-630nm), green (520-525nm), blue (465-470nm), amber(590-595nm) | ||||
| Controller | switch control | ||||
