- Name：LED Wallwasher Light
- Model：AP-WS-004

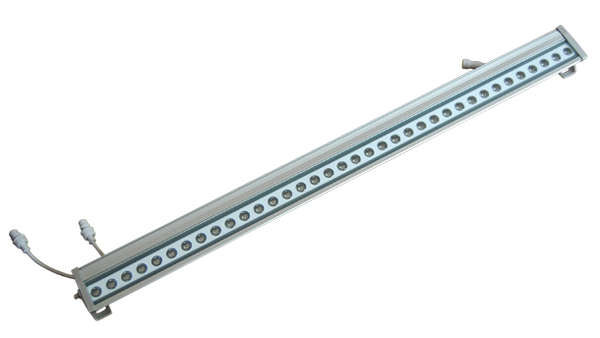

- Sketch：
Product Description
Independent design of intellectual property , fashionable exterior design ,make perfect combination of light and environment. 6063 alloy aluminum shell , auto filling glue technology craft , special structure design ensures good heat removal , efficiently reducing LED’s lighting wane. Single color and RGB are available , it can mix color in short distance , and issue colorful light , special constant current diver technology to ensure LED work stably. - Introduction
- Parameter
|
|
|
The Application of occasion
Mainly used for landscape lighting, building, advertising board, green landscape lighting, bar, dancing hall etc.

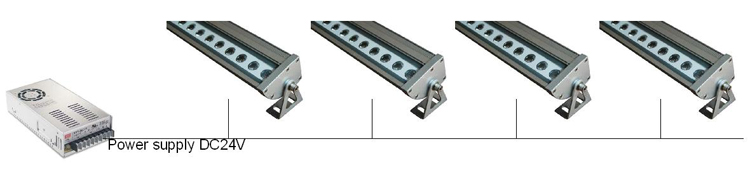

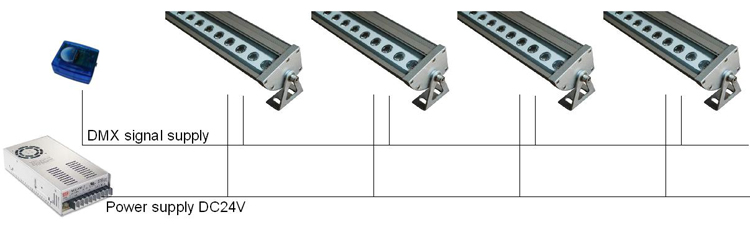

Installation Drawing:
| Electric parameter | Max. power | 36W | 24W | 18W | 36W | 24W | 18W |
| Current | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | |
| Input voltage | DC24V | ||||||
| Power efficiency | >90% | ||||||
| Environment parameter | Environment humidity | 0～85%RH | |||||
| Storage Temp. | -40°～+80° | ||||||
| Operating Tmep. | -20°～+50° | ||||||
| Structure parameter | Dimension | L1045mm*H90mm*W85mm | |||||
| Weight | 2.6Kg | ||||||
| Material | aluminum,tempered glass | ||||||
| Housing color | silver | ||||||
| Protection grade | IP65 | ||||||
| Optical parameter | Light source | CREE | |||||
| LED type | 12R12G12B | 8R8G8B | 6R6G6B | 36pcs LED | 24pcs LED | 18pcs LED | |
| R、G、B、Y、W fro option | |||||||
| Gray scale | 256*256*256 | 1 | |||||
| Beam angle | 15° | 25° | 45° | 60° | |||
| Lighting distance | 40M | 30M | 20M | 10M | |||
| Color Temp. | Warm white(2700～3500K)/neutral white(5000～6500K)/cool white(6500～9000K) | ||||||
| Wave length | Red (620-630nm), green (520-525nm), blue (465-470nm), amber(590-595nm) | ||||||
| Control system | DMX512 control; control by wire | ||||||
