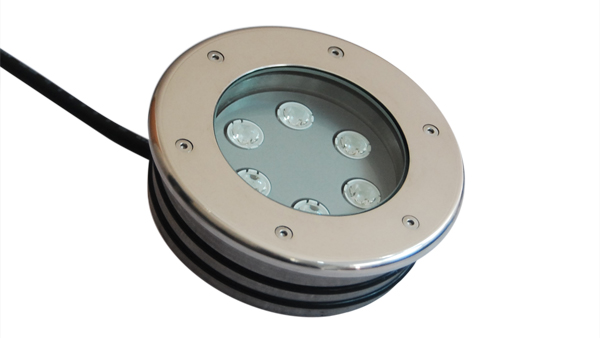

- Name：6W Cree Underwater Light
- Model：AP-UN-008E-6W
- Sketch：
- Power: 6W
- Input voltage: DC24V
- Light color: RGB/single color
- Beam angle: 15°/25°/45°/60°
- Control mode: DMX/On-off
- Product dimensions: ￠114H52
- Introduction
- Parameter
|
|
|
Product Description
● With the independent intellectual properties in design, modem appearance,making the lights to be an artwork and perfectly combined with the environment.
● The light adopts the high-pressure die-casting steel material.Surface treated with electrostatic plastic-sprayed in order to anti-aging.Self-cleaning and corrosion-resistance.
● The diffuser is made of toughened glass,impact resistance.
● Light fitting can allocate white or single RGB.Various of color available.DMX 512 cortol available.
The Application of occasion

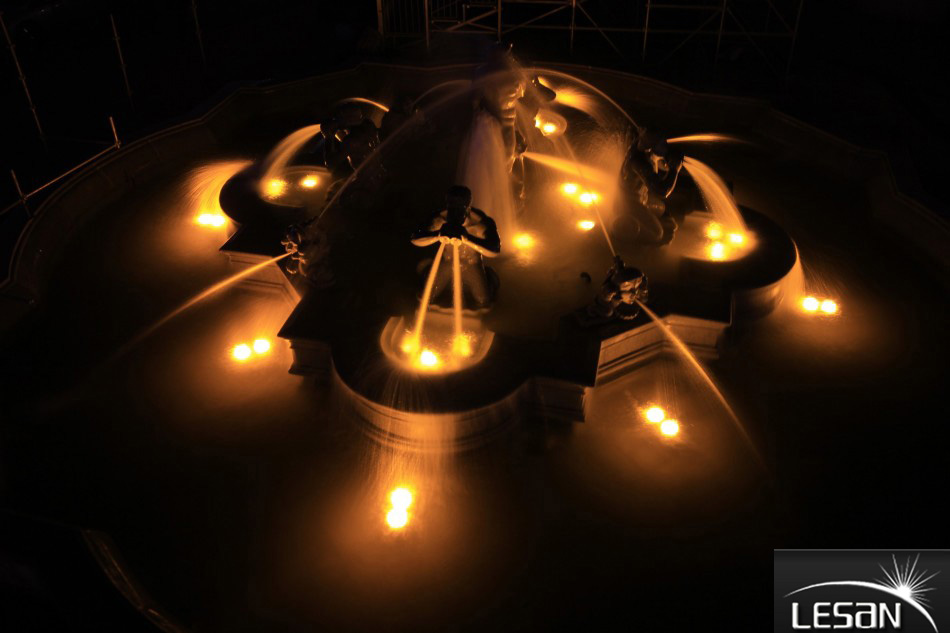

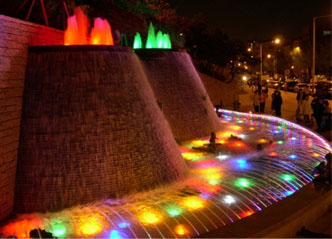

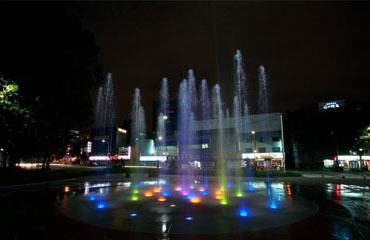

Mainly used for underwater lighting like fountain and waterfall, also spot light for rockery and bridge.
| Electric parameter | Max. power | 6W | 6W |
| Current | 300mA | 300mA | |
| Input voltage | DC24V | ||
| Power efficiency | >90% | ||
| Environment parameter | Environment humidity | 0～85%RH | |
| Storage Temp. | -40°～+80° | ||
| Operating Temp. | -20°～+50° | ||
| Structure parameter | Dimension | ￠114mm*H52mm | |
| Weight | 1.5Kg | ||
| Material | 316 stainless steel ,tempered glass | ||
| Housing color | stainless steel color | ||
| Protection grade | IP68 | ||
| Optical parameter | Light source | CREE | |
| LED type | 2R2G2B | 6PCS LED | |
| R、G、B、Y、W for choice | |||
| Gray scale | 256*256*256 | 1 | |
| Beam angle | 15° ; 25° ; 45° ; 60° | ||
| Projection distance | 40M ; 30M ; 20M ; 10M | ||
| Color temp. | Warm white(2700～3500K)/pure white(5000～6500K)/cool white(6500～9000K) | ||
| Wave lenghth | Red (620 - 630nm), green (520 - 525nm), blue (465 - 470nm), amber(590 - 595nm) | ||
| Controller | DMX512 control; On-Off control | ||
