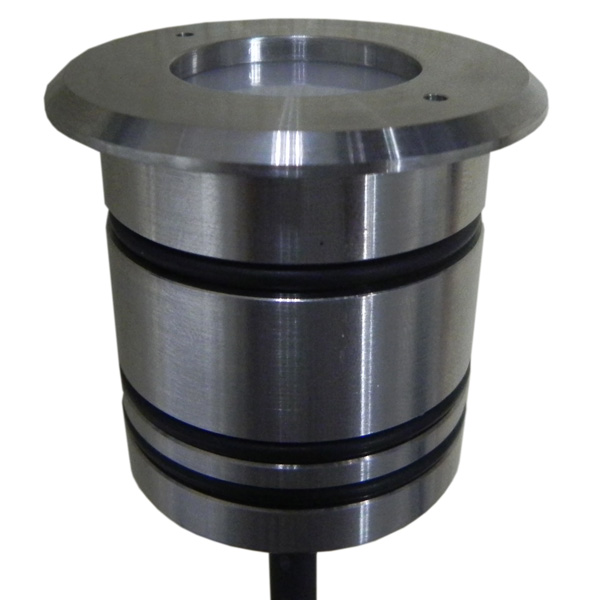

- Name：1-3W Cree Underwater Light
- Model：AP-UN003-1W

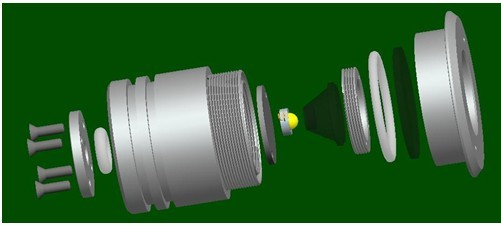

- Sketch：
- Power: 1~3W
- Input voltage: DC24V
- Light color: RGB/single color
- Beam angle: 15°/25°/45°/60°
- Control mode: DMX/On-off
- Product dimensions: ￠50*H46
- Introduction
- Parameter
- Power: 1~3W
- Input voltage: DC24V
- Light color: RGB/single color
- Beam angle: 15°/25°/45°/60°
- Control mode: DMX/On-off
- Product dimensions: ￠50*H46
|
|
|

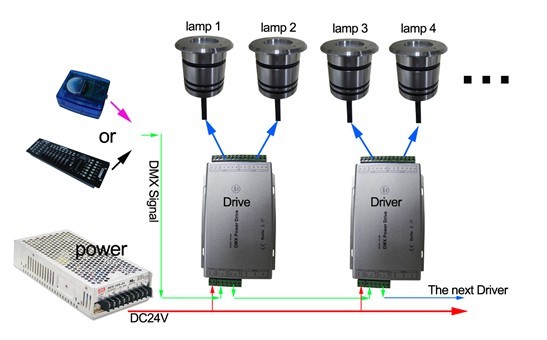

Installation:
| Electric parameter | Max. power | 1W | 2W | 3W | 3W | 10W | |||
| Current | 300mA | 450mA | 700mA | 3*350MA | 4*700MA | ||||
| Input voltage | DC24V | ||||||||
| Power efficiency | >90% | ||||||||
| Environment parameter | Environment humidity | 0～85%RH | |||||||
| Storage Temp. | -40°～+80° | ||||||||
| Operating Tmep. | -20°～+50° | ||||||||
| Structure parameter | Dimension | ￠50*H46 | |||||||
| Weight | 320g | ||||||||
| Material | stainless steel ,tempered glass | ||||||||
| Housing color | stainless steel color | ||||||||
| Protection grade | IP68 | ||||||||
| Optical parameter | Light source | CREE | Edison | CREE | |||||
| LED type | 1pcs single LED | ||||||||
| R、G、B、Y、Wfor option | RGB | RGBW | |||||||
| Leds angle | 15° | 25° | 45° | 60° | 45° | 60° | |||
| Projection distance | 40M | 30M | 20M | 10M | 20M | 10M | |||
| LED color Temp. | Warm white(2700～3500K)/neutral white(5000～6500K)/cool white(6500～9000K) | RGB | RGBW | ||||||
| Wave lenghth | Red (620-630nm), green (520-525nm), blue (465-470nm), amber(590-595nm) | ||||||||
| Controller | switch control/DMX control | ||||||||
